GREENFIELD, Mass. - Michimich -- LIN (Local Interconnect Network) is a serial network protocol used for communication between vehicle components. It is a single-wire, serial network protocol that supports communications up to 19.2 Kbit/s at a bus length of 40 meters (~120 feet). Copperhill Technologies offers a variety of embedded solutions for LIN Bus applications.

The Raspberry Pi Pico LIN Bus board supports the programming of automotive applications using MicroPython. The RPi Pico is a low-cost, high-performance microcontroller board with flexible digital interfaces. It features two ARM Cortex-M0+ cores that run up to 133MHz, 256KB RAM, 30 GPIO pins, and a wide range of interfacing options. These features are paired with 2MB of onboard QSPI Flash memory for code and data storage. In addition to powerful hardware resources, the Pico offers rich and complete software support and community resources. It comes with a complete Rasberry Pi official C/C++ SDK, Micropython SDK.

More on Michimich.com

• Robert Fabbio Inducted into the Austin Technology Council Hall of Fame
• Cybersecurity is Protecting Your Personal Information and Your Portfolio
• EY US names Tifiany Walker of Walker Healthforce a finalist for Entrepreneur Of The Year® 2025 Michigan and Northwest Ohio Award
• Michigan Lawn Care Company Begins May Treatment
• Boat Dock Manufacturer Gives Design Tips for Summer!

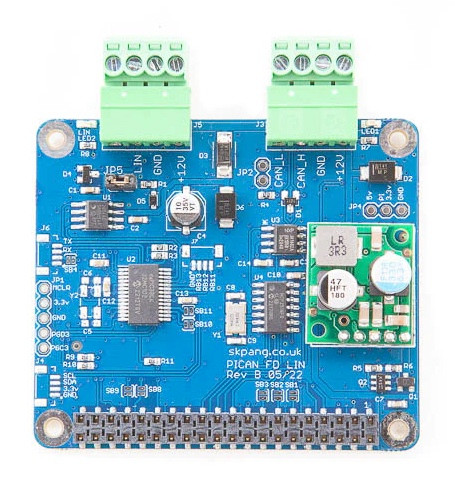

This PiCAN FD board has a LIN Bus interface, and the Microchip MCP2518FD IC provides classic CAN and CAN FD. A dsPIC33 microcontroller provides the LIN Bus connection. Communication to the Pi is per UART on ttyS0 using ASCII text commands. A sample LIN-bus GUI app is available, written in Python3 and tkinter. The firmware is updatable using the Microchip UnifiedHost java app, which requires the Raspberry Pi to run in GUI mode. There is an easy-to-install SocketCAN driver, and programming is supported in C or Python. The 3A SMPS (Switch Mode Power Supply) module powers the PiCAN FD LIN-bus board and Raspberry Pi from 7 VDC to 24 VDC external supply.

The Teensy 4.0 with CAN FD and LIN Bus is a CAN FD breakout board for use with the Teensy 4.0 (included in the scope of delivery). It has an onboard 5 VDC regulator with reverse voltage protection and a CAN FD transceiver. The Microchip MCP2004A chip provides the LIN Bus connection. The Teensy is a complete USB-based microcontroller development system compatible with Arduino software and libraries. It comes with a minimal footprint and is capable of implementing many projects. All programming is accomplished via the onboard USB port.

More on Michimich.com

• L2 Aviation Celebrates Grand Opening of New Facility at Cincinnati/Northern Kentucky International Airport (CVG)
• Managing Summer Staffing Surges with Confidence: Why Name Badges Are a Must for Seasonal Success
• Visa Named Title Sponsor of Ascending Athletes' Business Owners Summits for NFL Entrepreneurs
• L-Tron Team to Attend the 2025 Automate Conference in Detroit, MI
• The Paris Court of International Arbitration Elects Dr. John J. Maalouf as its New President

Furthermore, Copperhill Technologies offers a LIN Bus breakout board with a Microchip MCP2004A transceiver for all other embedded systems. The connection between the LIN bus breakout board and an embedded system, such as the Arduino, is a simple standard UART connection. The board complies with SAE J2602 and meets LIN Bus Specifications 1.3, 2.0, and 2.1. It can operate in Master or Slave mode through an onboard jumper.
